Product Description

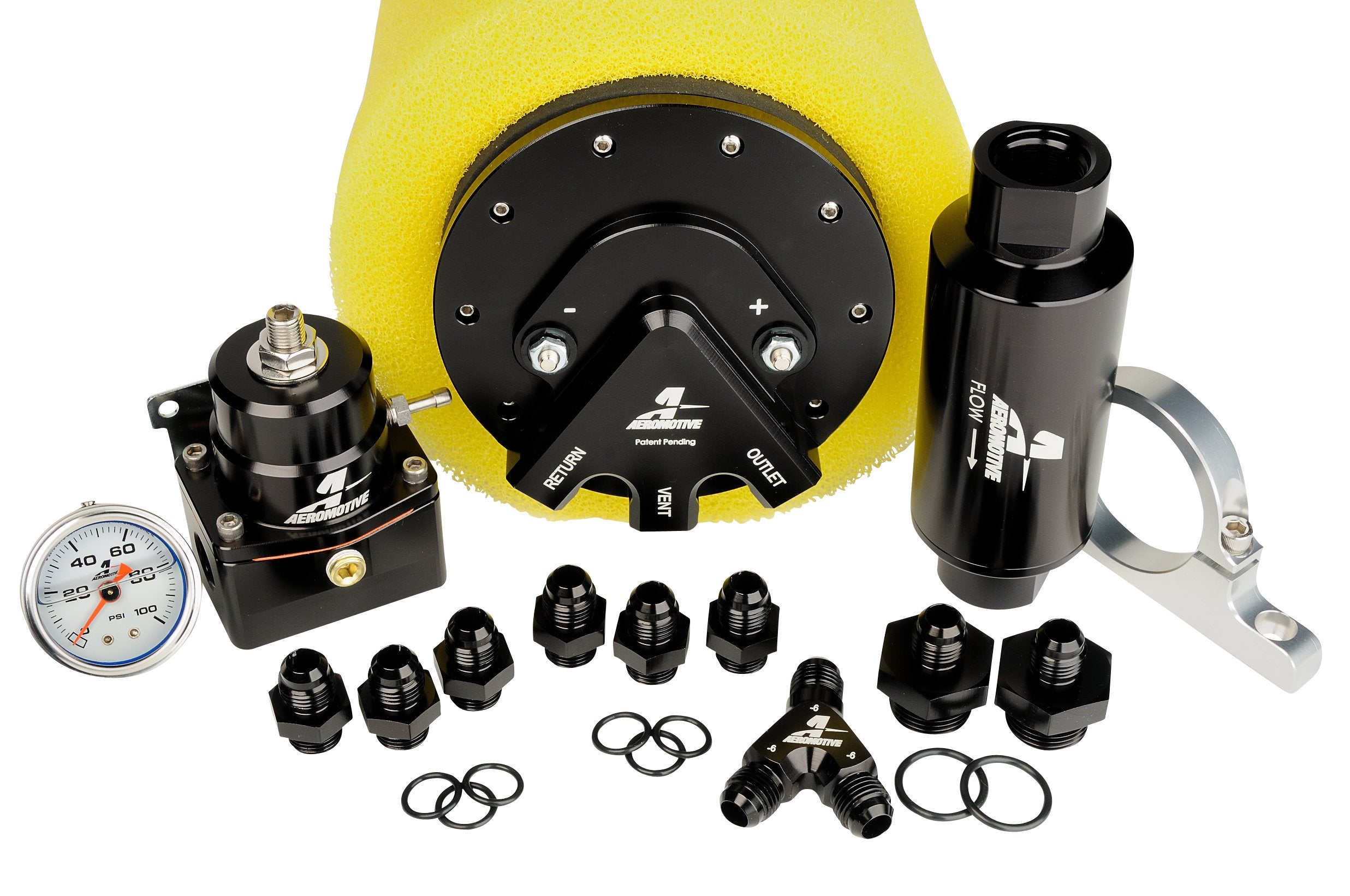

Part Number 17165: Dual Rail EFI Return Kit Phantom 200 and Installation Kit. These awesome Phantom EFI Fuel Systems have all the main fuel system parts needed to build a proper return - style EFI fuel system for engines with dual billet fuel rails. It comes with a Phantom Baffled Fuel Pump Kit having a 200 LPH fuel pump. Each system includes a custom black EFI bypass fuel pressure regulator, a high - flow billet fuel filter, a filter mounting bracket, a hi - flow Y - block, all required port fittings and o - rings, a deluxe wiring kit (not shown), and an Aeromotive fuel pressure gauge. Ideal for naturally aspirated and blown EFI engines that produce 300 - 700+ flywheel Horse Power, whether on the street or at the track. You'll need AN - 06 Style fuel hose and hose - ends for the fuel supply and return line installation, which are sold separately. This kit includes: 1x Part Number 18689 Phantom 200, 1x Part Number 12321 Filter Assembly (10 - micron), 1x Part Number 12305 Filter Bracket, 1x Part Number 13131 Fuel Pressure Regulator, 1x Part Number 16307 Fuel Pump Wiring Kit, 6x Part Number 15606 AN - 06 ORB to AN - 06 flare, 2x Part Number 15609 AN - 10 ORB to AN - 06 flare, 1x Part Number 15633 Gauge (0 - 100 psi), 1x Part Number 15672 Y - Block (AN - 06). Click here to learn more about this universal in - tank fuel system. Click here for installation instructions.
Using your Aeromotive Phantom 200 Fuel System is easy. First, make sure to buy the AN - 06 Style fuel hose and hose - ends separately for the fuel supply and return line installation. Follow the installation instructions carefully to set up all the parts like the filter, regulator, and wiring kit. When your engine is running, the fuel pump will send fuel through the system, and the pressure regulator will keep the fuel pressure steady. For maintenance, regularly check the 10 - micron filter. If it looks dirty or clogged, replace it. Also, keep an eye on the fuel pressure gauge to ensure the system is working properly. Avoid over - tightening the fittings as it can damage them. And always make sure the wiring connections are secure to prevent electrical issues.
